The Arbutus

"Wet" Classroom (with washroom)

24' x 40' 11'7"

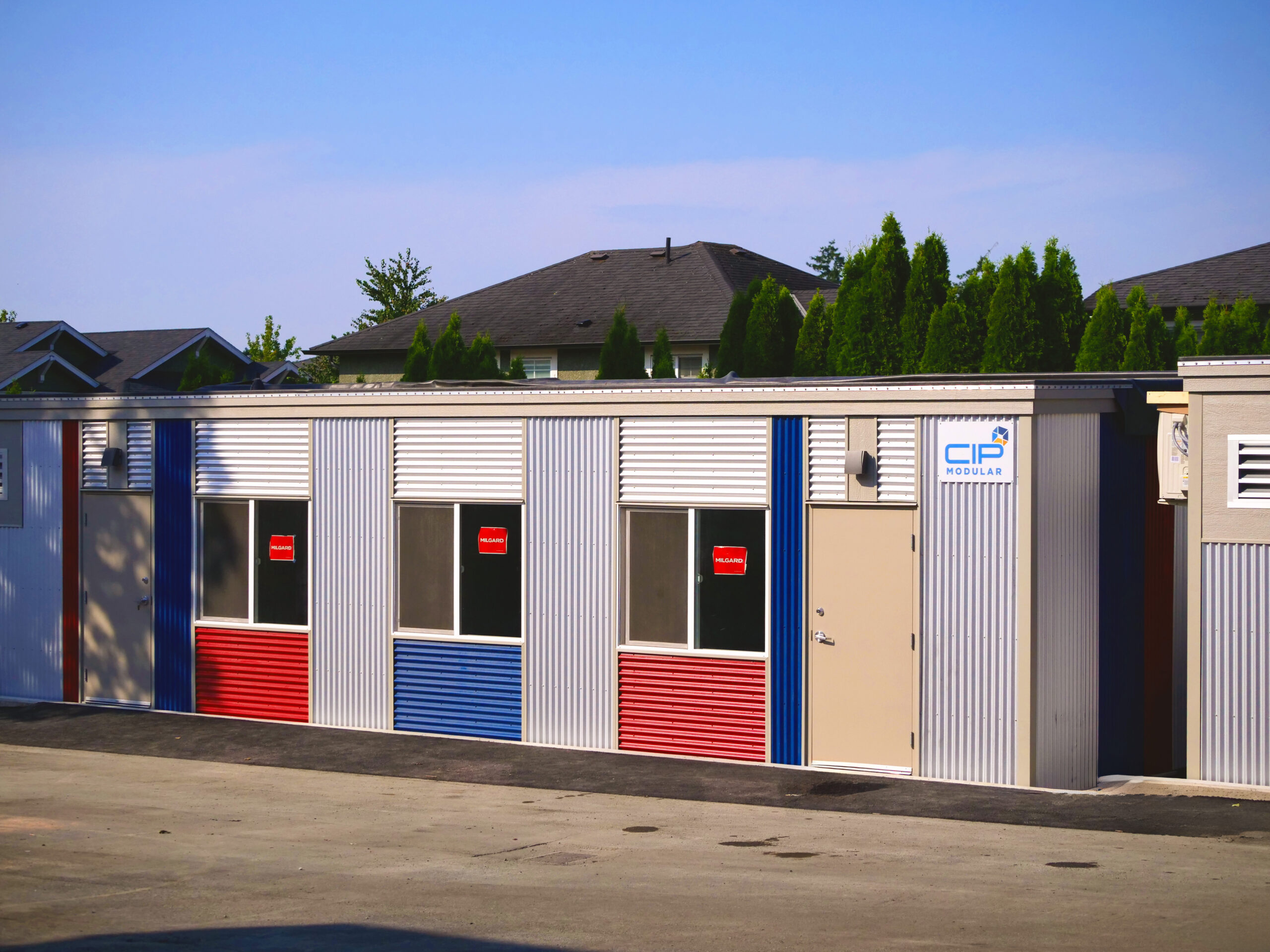

The Arbutus is a 24×40 modular classroom with a fully integrated washroom — designed for schools that want dependable, permanent space with added self-sufficiency. Built to the same high standards as our dry units, this classroom offers comfort, convenience, and code-ready compliance from day one.

For school districts, Indigenous communities, or remote locations where plumbing access is critical, the Arbutus is a plug-and-play solution with long-term durability.

All the strength and simplicity of the Alder — with the added convenience of a built-in washroom. The Arbutus delivers a complete learning space, no extras required.

Download Info Pack Contact Sales

;

Features

Dimensions:: 24' x 40' 11'7"
Student Capacity:: 30
Washrooms:: 1
Exterior Siding:: 7/8" Corrugated Tin; 2 tone: Charcoal & Copper; black trims
Interior Walls:: Tape and filled 5/8" drywall, painted to suit
Windows:: 5' x 4' Horizontal Slider; comes with insect screens; black exterior vinyl
Exterior Doors:: Hollow metal insulated door, black; comes with passage set and deadbolt
Partition:: Hollow core, prefinished white; comes with passage set

Roof:: EPDM rubber membrane; black; 100 PSI snow load; white termination bar
Floor:: Vinyl sheet flooring
Ceiling:: Tape and filled 5/8" drywall, white
Heating/Cooling:: Electric up-flow furnace with 3 ton heat pump for cooling; c/w 500 cfm HRV; gas fired options available on request
Lighting:: LED 2' x 4' flat panels; LED fixtures above doors; recessed pot lights in accessory rooms
Electrical:: 120/240 volt single phase; 200 amp service; duplex wall receptacles; tel/data conduits and patch panel installed; jacks and wiring not included
Fire Alarm:: Conduit and boxes included; wiring to be installed by client

Make it Yours

Exterior Siding: Material, Colour
Interior Walls, Ceiliing: Paint Colour, Transition Strip
Floor: Material, Colour

Available Upgrades

Lab Benches & Plumbing
Cabinets, Cubbies, & Shelving
Whiteboards, Screens, & Projectors
Telecom Installation
Gabled Shed, or Butterfly Metal Roof
Exterior Matched Skirting
Exterior Matched Decking w/ Metal Rails

The Arbutus

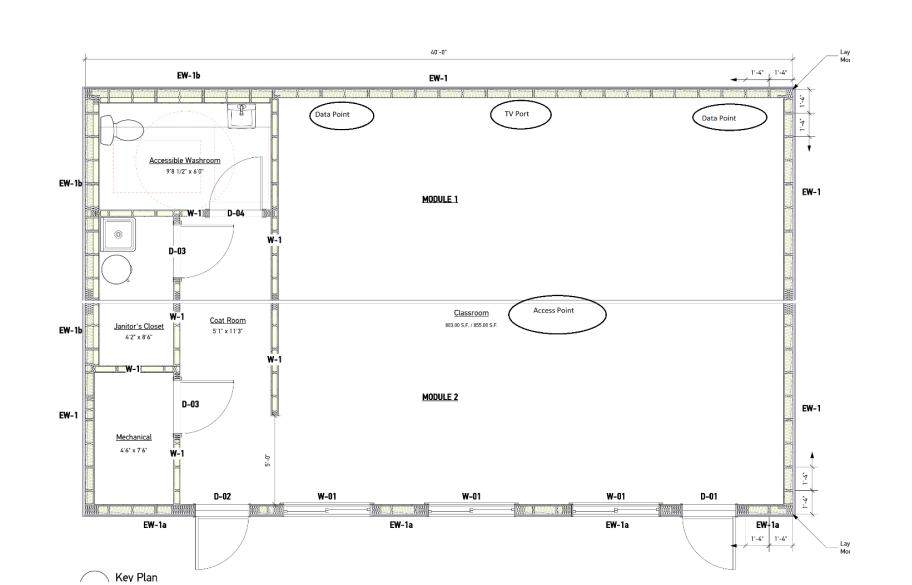

Built on the same 24×40 dual-module frame as the Alder, the Arbutus includes all of the features of our dry classroom units — including Tarkett commercial flooring, mud & tape drywall, multi-pane windows, a 200 amp panel, and efficient heat pump climate control — with the added benefit of a fully built-in washroom.

The washroom is finished with a high-durability melamine countertop, commercial-grade plumbing fixtures, and easy-clean surfaces throughout. It can be configured for accessibility depending on the site and user needs. As with all our structures, the Arbutus is fully engineered for coastal conditions, CSA A277 certified, and install-ready on a variety of foundations.
